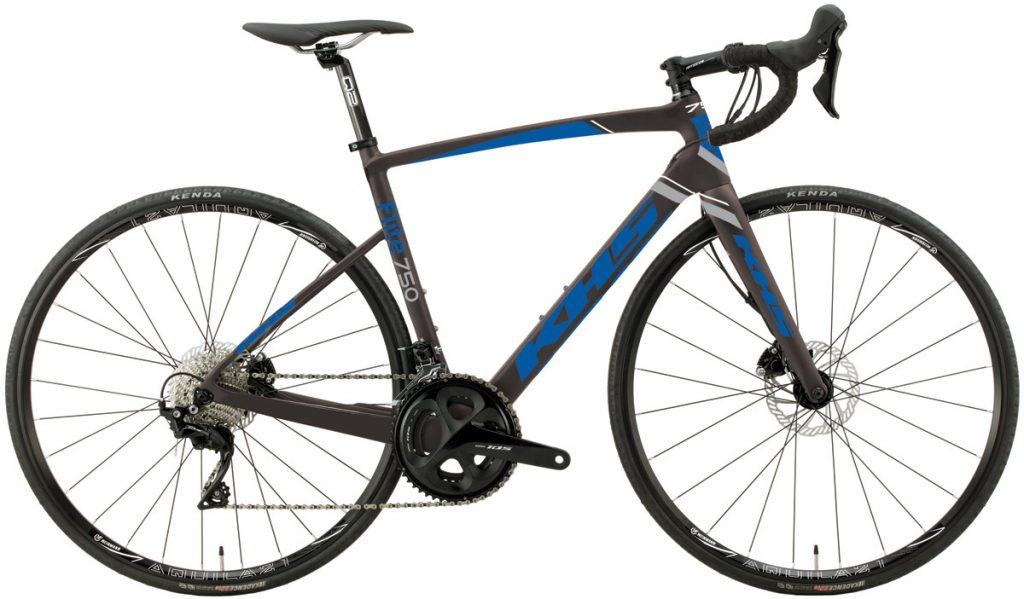

KHS Flite 750
This item is currently not available.
Details
Road bikes are fast-moving, nimble machines that can take you to see the world. These bikes are lighter weight than most other bicycles and have higher gearing to allow you to ride with much more speed to really put in the miles on your daily ride. KHS makes many levels of road bikes, from full-blown race bikes to fun sport ride bikes to off-road gravel bikes that take you to see the beauty of the earth.
| Size | X-Small/49 | Small/52 | Medium/54 | Medium/Large/56 | Large/58 | X-Large/61 |
|---|---|---|---|---|---|---|
| s/t c-t | 450/17.7 | 485/19.1 | 510/20.1 | 525/20.7 | 545/21.5 | 580/22.8 |
| h/t° | 70.5 | 71.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| s/t° | 74° | 74° | 73.5° | 73° | 73° | 72.5° |
| t/t effectv | 509/20 | 526/20.7 | 545/21.5 | 565/22.2 | 580/22.8 | 603/23.7 |
| c/s | 405/20 | 405/15.9 | 410/16.1 | 410/16.1 | 410/16.1 | 415/16.3 |
| BB Height | 265/10.4 | 265/10.6 | 268/10.6 | 268/10.6 | 270/10.6 | 270/10.6 |
| s.o. | 728/28.7 | 761/30 | 783/30.8 | 800/31.5 | 822/32.4 | 850/33.5 |
| h/t L | 115/4.5 | 140/5.5 | 155/6.1 | 175/6.9 | 200/7.9 | 225/8.9 |
| Stack | 515/20.3 | 540/21.3 | 559/22 | 578/22.8 | 599/23.6 | 623/24.5 |
| Reach | 361/14.2 | 370/14.6 | 380/15 | 388/15.6 | 397/15.6 | 407/16 |
Specs
| Frame | KHS Disc, Full MSD Carbon Monocoque w/Replaceable Derailleur Hanger, 1-1/8-1.5 Taper, Internal cable routing, Flat Mount Disc, 12 x 142 Thru-Axle |
|---|---|
| Fork | KHS Performance Disc, Carbon w/Aluminum Steerer, 1.5 Taper, w/Aluminum Dropout, Flat Mount w/12mm Thru-Axle |
| Rims | Alex GD24P, Disc Double Wall |
| Hubs |
Front: Formula RX512 Aluminum Disc, 12mm QR Rear: Formula RX142 Aluminum Disc, Cassette, 12mm QR |
| Spokes | 14G Stainless Black, 24x28 w/Aluminum Nipples |
| Tires | Kenda Kadence, 700x28C, 60TPI Folding |
| Bottom Bracket | Shimano Outboard Bearing |
| Crankset | Shimano FC-R7000 105, Outboard Bearing, 52x36 Mid Compact, XS:165, S-M:170, ML:172.5, L-XL:175 |
| Shifters | Shimano 105 ST-R7020, Hydraulic |
| Front Derailleur | Shimano 105 FD-R7000 |
| Rear Derailleur | Shimano 105 RD-R7000 |
| Cassette/Freewheel | Shimano CS-HG700, 11/34 11-Speed |
| Chain | KMC X11 |
| Brakes | Shimano 105, BR-R7070 Hydraulic Disc, Flat Mount w/160mm Rotors Wave 12 |
| Brake Levers | Shimano 105 BR-R7020 Hydraulic |
| Handlebars | FSA Omega Compact, 31.8, XS-M:42cm, L-XL:44cm |
| Tape/Grips | Cushion Tape |
| Stem | FSA Gossamer Forged Aluminum, 31.8, XS-S:90mm, M-L:100mm, XL:110mm |
| Headset | FSA Integrated Sealed ACB, 1-1/8”~1.5”, Aluminum Cap |
| Seatpost | Q2 Carbon |
| Saddle | KHS Performance Road |
* Subject to change without notice.
